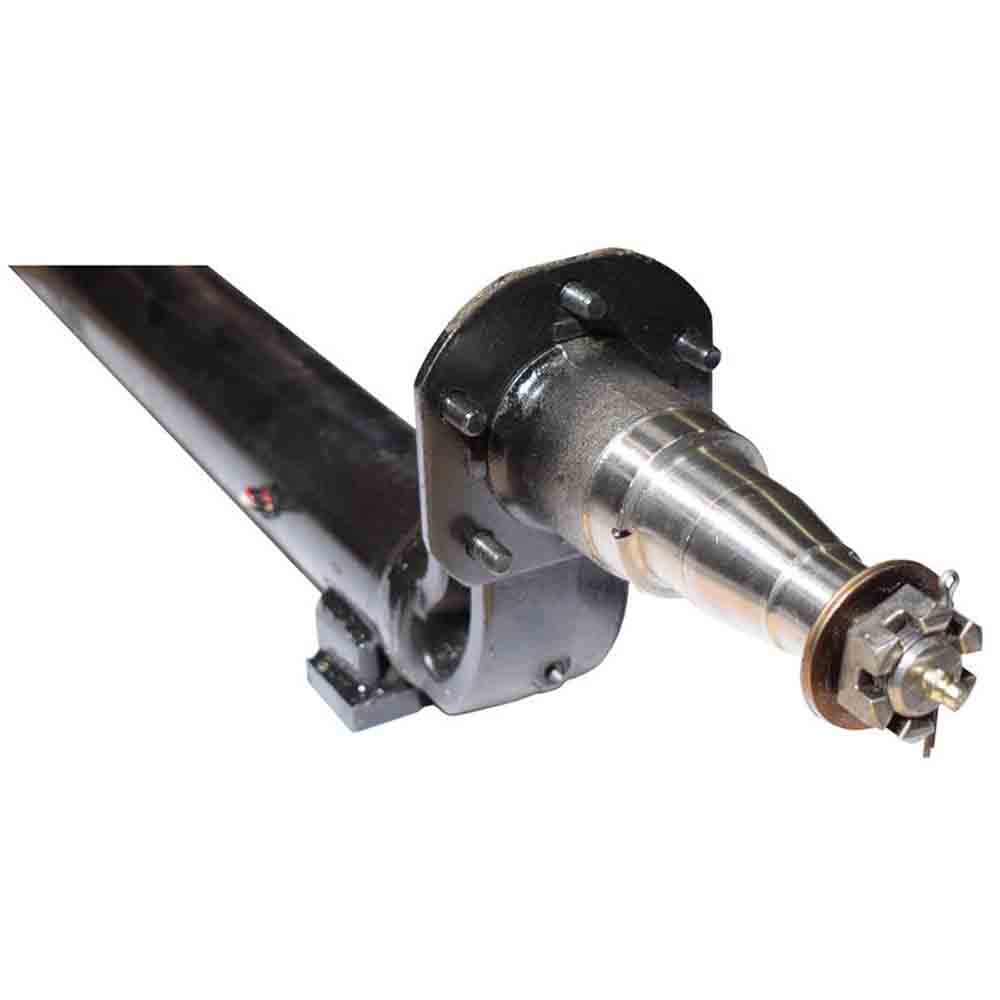

6,000 lb., 4" drop trailer axle tube with spindles, castle nuts and cotter pins. Axle tube is 3" diameter x 3/16" wall round tubing with 5-bolt flanges for attaching electric (6,000 lb.) or hydraulic (5,200 lb.) brakes, sold separately. Axle is supplied with spring seats attached for mounting springs in the underslung (springs under axle) position. Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.
Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
1-3/4 inch x 1-1/4 inch tapered spindles with castle nuts and cotter pins
Axle includes flanges for mounting drum brakes (sold separately)
Rated for up to 6,000 lbs. when equipped with electric brakes, 5,200 lbs. with hydraulic brakes (sold separately)
