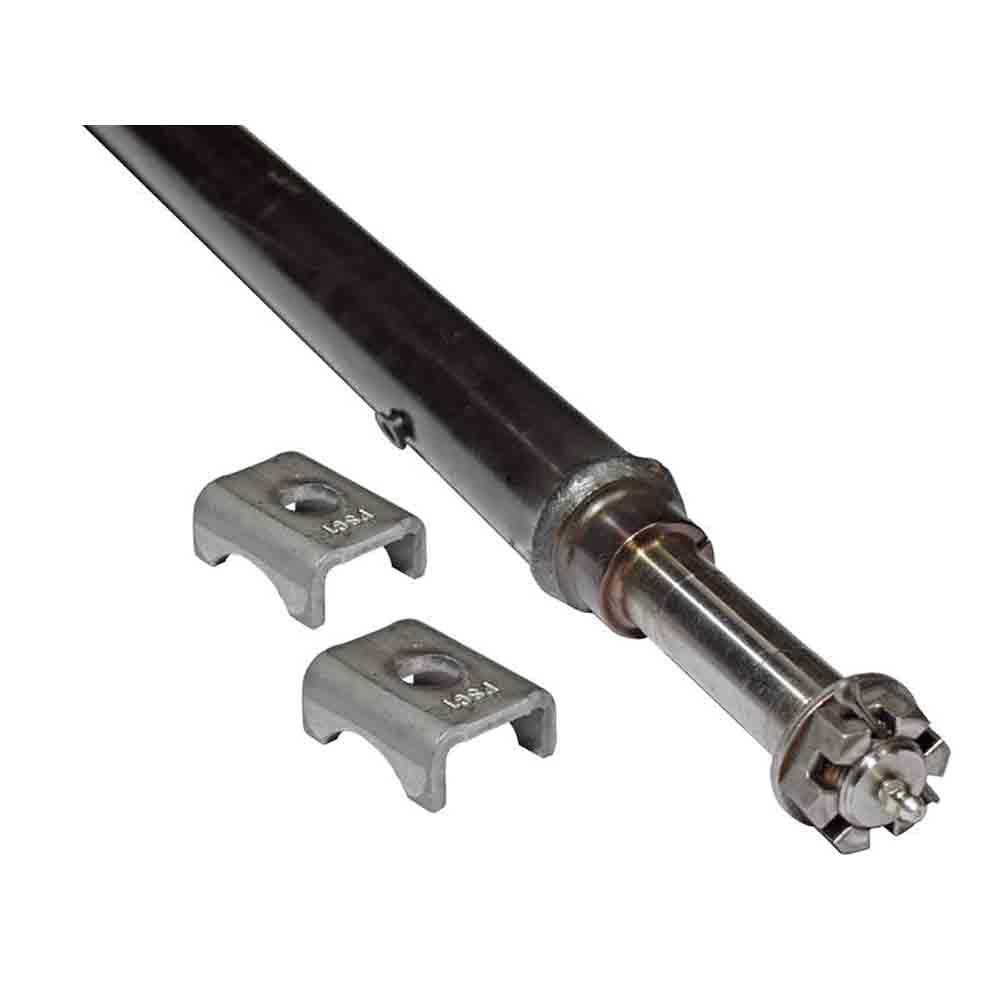

2,200 lb. straight trailer axle tube with spindles, castle nuts and cotter pins. Axle tube is 1-3/4" diameter x 3/16" wall round tubing. This axle DOES NOT include flanges for mounting electric or hydraulic brakes. May be used with 4 or 5-lug hubs, sold separately. Axle is supplied with loose spring seats which must be welded to the axle tube to complete the installation.
Axles are manufactured with a slight camber (arch). When attaching spring seats, axle must be positioned with the arch at the top of the axle.
Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
Spring seats are shipped loose and must be welded to the axle to complete the installation
1-1/16 straight spindles with castle nuts and cotter pins
Used on boat trailers, tent campers, utility and snowmobile trailers
