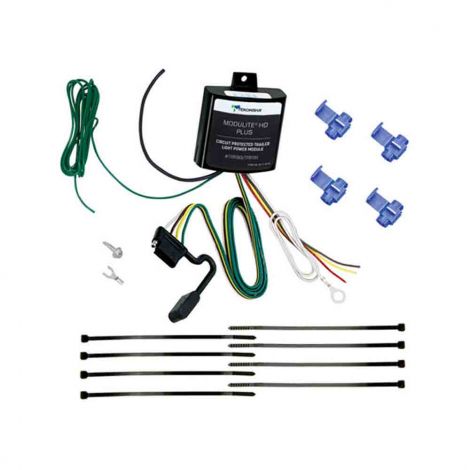

The ModuLite HD Plus Protector features integrated circuit and overload protection and includes a 4-flat connector with 60 inch lead and protective cover. Designed to interpret/decode multiplex signal inputs on vehicles such as BMW and Mercerdes.
Converts vehicle functions from a 3 wire system to a trailer 2 wire system
Can also be used on vehicles where a converter is not required (2-wire systems)
Draws Power directly from the Vehicle Battery and only uses less then 5 milliamps of the vehicle circuit for sensing (Standby Current < 2mA) to turn the trailer functions on and off
Heavy-Duty! Rated for up to 4.2 amps for Turns/Stop circuits and 7.5 amps for the Tail Light circuit
Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
Works with either LED or Incandescent bulbs (input/output) this gives trailer lights full brightness
Designed not to send feedback thru the vehicle circuits
Wiring Kit is NOT included with this kit! See Related Products below.
